ER108 is a multi-channel laser particle counter sensor using optical scattering and sensing system. A laser diode (LD), a photodiode and proper air flow are arranged into this device to make it detect the reflected light of particles in the air. Especially, it is effective to detect very fine particle that with >0.3um diameter. In addition it can distinguish particle size and count them into 6 particle size categories, and convert the particle numbers into PM2.5 and PM10 values by proper calibration. The sensor has two types digital output, I2C or UART for easy use.

APPLICATIONS

Outdoor Air Monitor

FEATURE

Small size (50.5 × 33.5 × 46mm)

Low power consumption Icc: MAX. 80mA with LD and fan on

Laser diode temperature monitor and protection

Digital output with I2C or UART interface

Multiple particle size counter output (0.3um to 10um)

Direct PM2.5 and PM10 microgram output, calibrated with TSI equipment

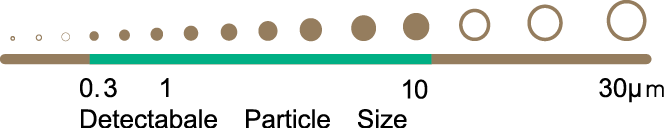

The minimum detectable particle size is 0.3um

Lead-free and RoHS directive compliant

Customized design fan with larger air flow and lower noise

Long lifetime laser diode and fan (> 20000 hours), programmable testing mode to extend LD lifetime (2x ~16x)
