产品描述：
本一氧化碳气体传感器可应用于室内需要测量一氧化碳气体浓度的场合。

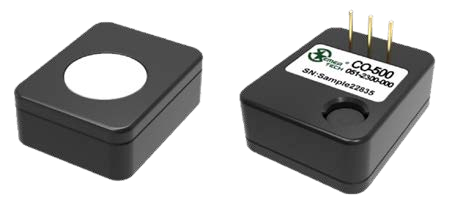

Product Description:
This carbon monoxide gas sensor is suitable for indoor applications requiring the measurement of carbon monoxide gas concentration.
| 参数 | 规格 |
| 量程 | 0 - 500 ppm |
| 最大荷载 | 1000 ppm |
| 灵敏度 (20°C) | 0.050 ± 0.015 μA/ppm |
| 响应时间 (T90) | ≤ 30 s |
| 基线 (20°C) | < ± 0.2 μA |
| 基线漂移 (-20°C - 50°C) | < 5 ppm |
| 分辨率 | 0.15 ppm |
| 线性度 | 线性 |
| 偏压 | 0 mV |
| 工作温度 | -20°C - 50°C |
| 工作压力 | 1 ± 0.1 标准大气压 |
| 工作湿度 | 15% - 90%RH (无冷凝) |
| Parameter | Specification |
| Range | 0 - 500 ppm |
| Maximum Load | 1000 ppm |
| Sensitivity (20°C) | 0.050 ± 0.015 μA/ppm |
| Response Time (T90) | ≤ 30 s |
| Baseline (20°C) | < ± 0.2 μA |
| Baseline Drift (-20°C - 50°C) | < 5 ppm |
| Resolution | 0.15 ppm |
| Linearity | Linear |
| Bias Voltage | 0 mV |
| Operating Temperature | -20°C - 50°C |
| Operating Pressure | 1 ± 0.1 standard atmosphere |
| Operating Humidity | 15% - 90%RH (no condensation) |
